Calcium Dyes Past, Present and Future

A History of Calcium Indicators in Life Science

Introduction to calcium dyes

Calcium ions (Ca2+) play a crucial physiological role in the body: signalling, blood clotting, in cellular communication, as a messenger, and forming important relationships with proteins and regulators such as vitamin D and parathormone. As a key player in muscle contraction and neuron function, calcium ions have been the subject of thousands of research studies. This research has driven the need for accurate calcium indicators.

A History of calcium dyes

Scientists at the University of California Berkley developed the first fluorescein-based calcium indicator in the 1980s. This breakthrough meant intracellular calcium could be visualised and quantified. This quickly led to the advent of calcium probes such as Fluo-3 AM and Fluo-4 AM which are now widely used. These fluorescein-based acetoxymethyl (AM) esters are hydrophobic and will pass through the cell membrane easily. Esterases within the cell hydrolyse the esters soon after entering the cell which enables them to detect calcium. Fluo-3 and Fluo-4 bind to calcium and when shown a ~490 nm excitation light, they will fluoresce at ~ 520 nm signal.

Problems with calcium dyes

Unfortunately, the new-found benefits associated with the use of fluorescein-based dyes arrived alongside some significant difficulties. The results obtained were difficult to read accurately because of high background fluorescence (‘noise’). Data analysis and bioassays with fluorescein-based dyes became problematic as the calcium probes created false signals, obscured significant results and hid true positives.

Calcium indicators have great importance in many fields of research. The issues caused by background fluorescence of Fluo-3 AM and Fluo-4 AM have been problematic enough to warrant much investigation. The results of extensive research indicate two probable reasons for the generation of this background noise:

  • The chemical properties of AM esters. These esters, like Fluo-3 AM and Fluo-4 AM, tend to hydrolyse in solution, the acetoxymethyl group is separated from the ester rendering it impermeable and unable to pass through the cell membrane. There will now be a significant proportion of the probe outside the cell creating more background fluorescence. Due to the reduced amount of probe that enters the cell the results will show a lower fluorescence signal.
  • The dyes are also thought to leak through organic anion transporters, possibly because they are poorly localised in the cytosol.This becomes significant later in the article when looking at solutions to the problems. Once the dyes are loaded into the cells it appears that Fluo-3 and Fluo-4 can be transported into intracellular organelles or into the extracellular matrix.  The result is a similar effect, the Fluo-3 and Fluo-4 that are now outside the cell will fluoresce causing increased baseline fluorescence and potentially masking significant results. This phenomenon is particularly problematic for calcium flux assays and calcium imaging where geospatial quantification of calcium is so important.

To enable interpretation of the results of these bioassays, it is crucial to localise the calcium probe carefully and check that it is being transported efficiently.

Past solutions

Clearly, the issues with Fluo-3 and Fluo-4 as calcium indicators needed to be resolved. Researchers have suggested many possible solutions, one of which was to use Fluo-3 and Fluo-4 alongside the drug probenecid. Probenecid is used in the treatment of gout and hyperuricemia; it also prolongs the physiological effect of other drugs such as penicillin.  It is thought that its efficacy is due to its inhibitory effect on organic anion transporter activity within the kidney. This inhibition leads to retention of some compounds like pharmaceutical drugs, prolonging their efficacy. This same mechanism inhibits the organic anion transporter activity that is responsible for causing leakage of Fluo-3 and Fluo-4 from the cell. Using probenecid in conjunction with the Fluo-3 and Fluo-4 improves retention, thereby reducing background fluorescence.

A History of Calcium Indicators in Life Science

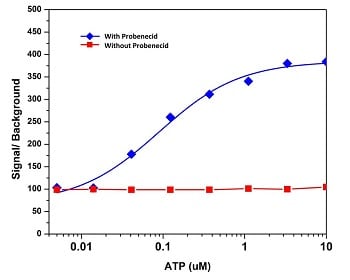

Fig. 1 ATP stimulated calcium response of endogenous P2Y receptor in CHO-K1 cells. 100 µL of 5 mM  Fluo-4 AM with (blue) and without (red) the presence of 2.5 mM probenecid

However, it quickly became apparent that this solution was less than perfect. Whilst it had the beneficial effects of reducing fluorescence, it couldn’t be ignored that it is a drug, therefore causing changes to normal cellular functioning. The precise effects on the cell weren’t clear, neither were the implications of those effects to results. This indicated the need to impose additional controls such as probenecid dose, making it a less viable option.

The Future of Calcium dyes

AAT Bioquest recognised the need to find a solution to the problem of background fluorescence. The result is a [three-step process] producing a new, efficient Cal-520® indicator, which successfully reduces the amount of background fluorescence.

Step 1. To improve localisation and cellular retention.  Firstly, changes were made to the molecular structure of Fluo-3 and Fluo-4, thereby changing chemical properties that would make the AM ester bond far more stable. The result was a greatly reduced incidence of hydrolysis when in solution to improve cell loading. The changes enhanced cellular retention as well as improving localisation.

Step 2. Synthesis of compound. AAT Bioquest chemists discovered a reaction path that produced a good yield, thereby keeping costs of production to a minimum.

Step 3. Scale of production The manufacturing process was fine tuned to ensure the best quality calcium indicator compounds could be produced efficiently, representing good value for the researcher in every respect.

Cal-520® AM is a dramatic improvement on existing calcium dyes. Cal-520 benefits include:

  • Improved stability of the AM ester bond
  • Greatly reduced hydrolysis in solution when compared to Fluo-3 AM and Fluo-4 AM
  • Improved localisation within cell cytosol
  • Increased retention
  • No need to use probenecid and its associated controls#

A History of Calcium Indicators in Life Science



Fig. 2 100 µL of 4 µM Fluo-4 AM (left, Cat# 20552-AAT), Cal 520™ AM (right, Cat# 21130-AAT) CHO-M1 cells illustrating response of endogenous P2Y receptor to ATP with probenecid. Images from a fluorescence microscope using FITC channel.



The result provided by Cal-520 AM is significantly lower background fluorescence as well as a greatly improved signal to background ratio. Researchers will also find that Cal-520® AM maintains the spectra seen from Fluo-3 and Fluo-4, this enables the transition from the Fluo-3 AM and Fluo-4 AM compounds to the Cal-520® AM compound with no need to alter equipment used.

A History of Calcium Indicators in Life ScienceFig. 3 ATP stimulated calcium response of endogenous P2Y receptor in CHO-K1 cells with Cal-520® AM (red) compared to Fluo-4 AM (blue).

The Cal 520® AM has also been adapted for use in multiplexing. 590TM AM and Cal-630TM AM compounds have been created for longer wavelengths. These compounds are equally as reliable and are compatible for use with green fluorescence indicators such as GFP.

Cal-520® AM is an excellent probe for use with fluorescence-based assay detection of intracellular calcium mobilisation. IT allows easy analysis and quantification of GPCR and calcium channel targets and enables screening of agonists and antagonists. Cal-520® AM can be used with fluorescence spectroscopy, fluorescence microscopy, fluorescence microplate platform and flow cytometry. Its applications in the field of research are varied and increasing as its qualities are being realised: neurobiology, cardiology and cell signalling included. Cal-520®AM is proving extremely valuable in a growing number of research areas, it’s applications in the study of intracellular calcium
