Immunohistochemistry

Immunohistochemistry Products

Higher Affinity | Higher Sensitivity | Higher Specificity

Immunohistochemistry (definition): the method for localizing specific antigens in tissue or cells using antibodies, enzyme conjugates and substrate-chromogens. The antigen-antibody reaction can be evidenced with an optical microscope. The antibodies can be polyclonal or monoclonal (usually from mouse or rabbit) in origin. These non-infectious biological reagents are used by research and clinical laboratories to detect the presence of infectious agents, cancer and other proteins of interest.



Bio SB offers a wide range of immunohistochemistry products (IHC), including rabbit and mouse monoclonal and polyclonal antibodies for IVD and ASR applications, as well as complete detection systems or their components. We offer both HRP and AP kits: The ImmunoDetector kits use the traditional 3-step Biotin-Streptavidin-Enzyme / Substrate-Chromogen technology while the PolyDetector and PolyDetector Plus kits have been developed using a proprietary tandem hyperlabelling technology used to directly label immunoglobulins with enzymes. This ensures consistent and reproducible immunostaining for all types of nuclear, cytoplasmic and membranal antigens, in different types of tissues or cells. We also offer for RUO Complete PolyDetector HRP/DAB kits for ER/PR, HER-2 neu and CD117 that include all reagents, solutions, tissue controls and reagent controls.

Antibodies

SARS CoV-2 IHC to Assess COVID 19 Pathogenesis

Development of SARS CoV-2 IHC to Assess COVID-19 Pathogenesis and its Role in the Cytokine Storm Syndrome

Bio SB Background

Bio SB Inc. is a Biotech company performing R&D, production, distribution and marketing of unique products for Immunohistochemistry (IHC), Immunocytochemistry (ICC), Immunofluorescence (IF), Fluorescent in situ hybridization (FISH) and Chromogenic in situ hybridization (CISH) technologies that meet the highest international standards for applications in Cancer Diagnostics and Cancer Treatment Prediction, Molecular Pathology, Cancer Research, Microbiology, Immunology and Genetics. BIO SB manufactures and develops products in accordance with FDA cGMP, CE IVD and ISO 13485:2016 standards.

Using the SARS CoV-2 published sequence, Bio SB has developed and manufactured the CoV-2 recombinant proteins and peptides needed to generate antibodies to identify the virus, receptors and IL’s by Immunohistochemistry and Immunofluorescence on FFPE biopsies. Additionally, Bio SB has developed antibodies to identify the ACE-2 and TMPRSS2 receptors and has a large amount of CD (B and T Lymphocytes, NK Cells, Monocytes, Macrophages), and other markers for immune response factors (IL-1a, IL1b and IL-6) and vascular cells with the intention to asses the pathological damaged caused by the COVID-19 infection using single and multiplex Immunohistochemistry and Immunofluorescence on FFPE COVID-19 positive biopsies.

COVID-19 Pandemic

The first reports of the viral infection attracted attention in late December 2019 in Wuhan, the capital of Hubei, China. Later, it was revealed that the virus responsible for causing the infections was contagious between humans. By early January 2020, terms like “the new coronavirus” and “Wuhan coronavirus were in common use. On February 11, 2020, a taxonomic designation “severe acute respiratory syndrome coronavirus 2” (SARS-CoV-2) became the official means to refer to the virus strain that was previously termed as 2019-nCoV and Wuhan coronavirus. Within a few hours on the same day, the WHO officially renamed the disease as COVID-191. SARS-CoV infected a total of more than 8,000 persons with 774 deaths in 37 additional countries in 2003.

As of May 24, 2020 COVID-19 has infected 5,442,507 people worldwide and killed 345,036, making it more deadly than the pandemic observed with the SARS-CoV outbreak in 2003 (https://www.bloomberg.com/graphics/2020-coronavirus-cases-world-map/). Even more serious, the COVID-19 virus could be widely transmitted by asymptomatic carriers to other people in close contact and some of the patients will still carry the virus even after they recover from the disease.

COVID-19 Symptoms and Pathological Damage

SARS-CoV-2 patients can experience a diversity of issues – from mild symptoms to severe illness. These symptoms generally appear 2-14 days after exposure to the virus. Studies show that patients may be most infectious in the days before they began showing symptoms. The main initial symptoms of SARS-CoV-2 are chills, muscle pains, headache, sore throat and loss of taste and smell. At least 80 percent of those known to be infected with SARS-CoV-2 appear to mount a typical immune response. In a normal immune response, several different types of immune cells (lymphocytes) and chemical messengers are released in an intricate sequence, causing a mild localized inflammatory state. 6,7

Currently we have little macroscopic and microscopic information about the pathological damage being caused by SARS-CoV-2. The macroscopic features of SARS-CoV-2 are likely to be in the chest and may include pleurisy, pericarditis, lung consolidation and pulmonary edema. Lung weight may be increased above normal. It should be noted a secondary infection may be superimposed on the viral infection that can lead to purulent inflammation typical of secondary bacterial infections. Microscopic findings are nonspecific, including edema, pneumocyte hyperplasia, focal inflammation, and multinucleated giant cell formation with generalized diffuse alveolar damage with exudates. The inflammation is predominantly lymphocytic, and multinucleated giant cells seen alongside large atypical pneumocytes, with no definitive viral inclusions noted. In general, features are very similar to those seen in SARS and MERS-coronavirus infections.

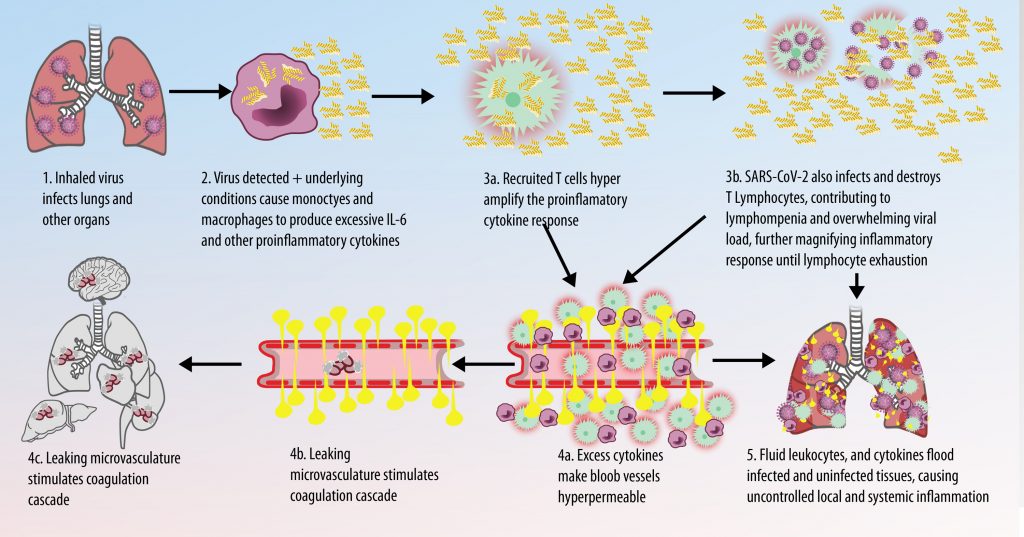

Cytokine Storm Syndrome

The vast majority of patients with COVID-19 have had a good prognosis, but there are still some critical individuals and even death.10 Most of these critically ill and dead patients do not develop severe clinical manifestations in the early stages of the disease. Some patients only show mild fever, cough, or muscle soreness. These conditions suddenly deteriorate in the later stages of the disease or in the recovery process . Acute respiratory distress syndrome (ARDS) and multiple-organ failure occur rapidly, resulting in death within a short time. Cytokine storm is considered to be one of the major causes of ARDS and multiple organ failure.

Cytokine Storm Syndrome (CSS) is characterized by systemic symptoms and signs derived from a massive and uncontrolled inflammatory response caused by pro- and anti-inflammatory cytokine dysregulation. Viruses, such as Herpes and Epstein-Barr are known to trigger CSS, as is H5N1 influenza. Current literature indicates that SARS-CoV-2 triggers CSS and has been attributed to the severe symptoms’ characteristic of critical patients. CSS in these patients is often fatal, as was the case in the previous SARS and MERS outbreaks.

The first cytokines released are interleukin 1β (IL-1β) and tumor necrosis factor-α (TNF-α), which attract a variety of circulating white blood cells (WBCs) to the infection site, including neutrophils, monocytes, macrophages, and natural killer (NK) cells. This response, along with the antipathogenic chemicals released by these cells (i.e., complement), comprise the innate immune response. These cells directly attack the invading pathogen and also release additional cytokines, chief among them interleukin-1 and 6 (IL-6). IL-6 is essential for invoking the adaptive immune response, which calls T-cells, B-cells, and T helper (Th) cells to the infection site. IL-6 also stimulates further recruitment, proliferation and activation of macrophages.

It is the ICU physician who is most likely to witness one of the deadliest manifestations of the abnormal immunological response, the cytokine storm syndrome (CSS). This response is also referred to by some as the cytokine release syndrome (CRS). CSS is characterized by continuous activation and expansion of macrophage and lymphocyte populations, which secrete large amounts of cytokines, causing the cytokine storm. This massive cytokine release is akin to hemophagocytic lymphohistiocytosis (HLH) disease, a syndrome characterized by initial unchecked and persistent activation of cytotoxic T lymphocytes and NK cells.

Clinical and laboratory manifestations of HLH include fever, enlarged liver and/or spleen, neurologic dysfunction, coagulopathy, liver dysfunction, cytopenias (i.e., low levels of erythrocytes, leukocytes, and/or platelets), hypertriglyceridemia, hyperferritinemia, hemophagocytosis, and eventually diminished NK cell activity as the immune system becomes progressively paralyzed. HLH can be familial (primary HLH) or secondary to another disease process (sHLH), such as rheumatic disease, in which it is referred to as macrophage activation syndrome (MAS, characterized by elevated ferritin).

This activation induces inflammatory monocytes to highly express IL-6, starting a localized and then systemic cascade effect that results in hyperproduction of IL-6, which accelerates the inflammatory process. Because IL-6 also increases vascular permeability, excessive levels cause blood vessels to become very leaky. This, along with clotting factors released from vascular endothelial cells, stimulates the coagulation cascade, resulting in microthrombosis (tiny clots), which leads to ischemia and tissue death of the kidney, intestines, heart, liver, brain and extremities.

When infection occurs, the immune system responds by releasing dozens of pro- and anti-inflammatory cytokines. Interleukin -6 (IL-6) is hypothesized to be a key component of the cytokine response. The sequences are highly simplified overviews illustrating the dysregulated immune response resulting in CSS.



SARS-CoV-2 IVD IHC Products to Assess COVID-19 Diagnosis and Pathogenesis

Antibodies by Application

SARS CoV-2 IHC to Assess COVID 19 Pathogenesis

Development of SARS CoV-2 IHC to Assess COVID-19 Pathogenesis and its Role in the Cytokine Storm Syndrome

Bio SB Background

Bio SB Inc. is a Biotech company performing R&D, production, distribution and marketing of unique products for Immunohistochemistry (IHC), Immunocytochemistry (ICC), Immunofluorescence (IF), Fluorescent in situ hybridization (FISH) and Chromogenic in situ hybridization (CISH) technologies that meet the highest international standards for applications in Cancer Diagnostics and Cancer Treatment Prediction, Molecular Pathology, Cancer Research, Microbiology, Immunology and Genetics. BIO SB manufactures and develops products in accordance with FDA cGMP, CE IVD and ISO 13485:2016 standards.

Using the SARS CoV-2 published sequence, Bio SB has developed and manufactured the CoV-2 recombinant proteins and peptides needed to generate antibodies to identify the virus, receptors and IL’s by Immunohistochemistry and Immunofluorescence on FFPE biopsies. Additionally, Bio SB has developed antibodies to identify the ACE-2 and TMPRSS2 receptors and has a large amount of CD (B and T Lymphocytes, NK Cells, Monocytes, Macrophages), and other markers for immune response factors (IL-1a, IL1b and IL-6) and vascular cells with the intention to asses the pathological damaged caused by the COVID-19 infection using single and multiplex Immunohistochemistry and Immunofluorescence on FFPE COVID-19 positive biopsies.

COVID-19 Pandemic

The first reports of the viral infection attracted attention in late December 2019 in Wuhan, the capital of Hubei, China. Later, it was revealed that the virus responsible for causing the infections was contagious between humans. By early January 2020, terms like “the new coronavirus” and “Wuhan coronavirus were in common use. On February 11, 2020, a taxonomic designation “severe acute respiratory syndrome coronavirus 2” (SARS-CoV-2) became the official means to refer to the virus strain that was previously termed as 2019-nCoV and Wuhan coronavirus. Within a few hours on the same day, the WHO officially renamed the disease as COVID-191. SARS-CoV infected a total of more than 8,000 persons with 774 deaths in 37 additional countries in 2003.

As of May 24, 2020 COVID-19 has infected 5,442,507 people worldwide and killed 345,036, making it more deadly than the pandemic observed with the SARS-CoV outbreak in 2003 (https://www.bloomberg.com/graphics/2020-coronavirus-cases-world-map/). Even more serious, the COVID-19 virus could be widely transmitted by asymptomatic carriers to other people in close contact and some of the patients will still carry the virus even after they recover from the disease.

COVID-19 Symptoms and Pathological Damage

SARS-CoV-2 patients can experience a diversity of issues – from mild symptoms to severe illness. These symptoms generally appear 2-14 days after exposure to the virus. Studies show that patients may be most infectious in the days before they began showing symptoms. The main initial symptoms of SARS-CoV-2 are chills, muscle pains, headache, sore throat and loss of taste and smell. At least 80 percent of those known to be infected with SARS-CoV-2 appear to mount a typical immune response. In a normal immune response, several different types of immune cells (lymphocytes) and chemical messengers are released in an intricate sequence, causing a mild localized inflammatory state. 6,7

Currently we have little macroscopic and microscopic information about the pathological damage being caused by SARS-CoV-2. The macroscopic features of SARS-CoV-2 are likely to be in the chest and may include pleurisy, pericarditis, lung consolidation and pulmonary edema. Lung weight may be increased above normal. It should be noted a secondary infection may be superimposed on the viral infection that can lead to purulent inflammation typical of secondary bacterial infections. Microscopic findings are nonspecific, including edema, pneumocyte hyperplasia, focal inflammation, and multinucleated giant cell formation with generalized diffuse alveolar damage with exudates. The inflammation is predominantly lymphocytic, and multinucleated giant cells seen alongside large atypical pneumocytes, with no definitive viral inclusions noted. In general, features are very similar to those seen in SARS and MERS-coronavirus infections.

Cytokine Storm Syndrome

The vast majority of patients with COVID-19 have had a good prognosis, but there are still some critical individuals and even death.10 Most of these critically ill and dead patients do not develop severe clinical manifestations in the early stages of the disease. Some patients only show mild fever, cough, or muscle soreness. These conditions suddenly deteriorate in the later stages of the disease or in the recovery process . Acute respiratory distress syndrome (ARDS) and multiple-organ failure occur rapidly, resulting in death within a short time. Cytokine storm is considered to be one of the major causes of ARDS and multiple organ failure.

Cytokine Storm Syndrome (CSS) is characterized by systemic symptoms and signs derived from a massive and uncontrolled inflammatory response caused by pro- and anti-inflammatory cytokine dysregulation. Viruses, such as Herpes and Epstein-Barr are known to trigger CSS, as is H5N1 influenza. Current literature indicates that SARS-CoV-2 triggers CSS and has been attributed to the severe symptoms’ characteristic of critical patients. CSS in these patients is often fatal, as was the case in the previous SARS and MERS outbreaks.

The first cytokines released are interleukin 1β (IL-1β) and tumor necrosis factor-α (TNF-α), which attract a variety of circulating white blood cells (WBCs) to the infection site, including neutrophils, monocytes, macrophages, and natural killer (NK) cells. This response, along with the antipathogenic chemicals released by these cells (i.e., complement), comprise the innate immune response. These cells directly attack the invading pathogen and also release additional cytokines, chief among them interleukin-1 and 6 (IL-6). IL-6 is essential for invoking the adaptive immune response, which calls T-cells, B-cells, and T helper (Th) cells to the infection site. IL-6 also stimulates further recruitment, proliferation and activation of macrophages.

It is the ICU physician who is most likely to witness one of the deadliest manifestations of the abnormal immunological response, the cytokine storm syndrome (CSS). This response is also referred to by some as the cytokine release syndrome (CRS). CSS is characterized by continuous activation and expansion of macrophage and lymphocyte populations, which secrete large amounts of cytokines, causing the cytokine storm. This massive cytokine release is akin to hemophagocytic lymphohistiocytosis (HLH) disease, a syndrome characterized by initial unchecked and persistent activation of cytotoxic T lymphocytes and NK cells.

Clinical and laboratory manifestations of HLH include fever, enlarged liver and/or spleen, neurologic dysfunction, coagulopathy, liver dysfunction, cytopenias (i.e., low levels of erythrocytes, leukocytes, and/or platelets), hypertriglyceridemia, hyperferritinemia, hemophagocytosis, and eventually diminished NK cell activity as the immune system becomes progressively paralyzed. HLH can be familial (primary HLH) or secondary to another disease process (sHLH), such as rheumatic disease, in which it is referred to as macrophage activation syndrome (MAS, characterized by elevated ferritin).

This activation induces inflammatory monocytes to highly express IL-6, starting a localized and then systemic cascade effect that results in hyperproduction of IL-6, which accelerates the inflammatory process. Because IL-6 also increases vascular permeability, excessive levels cause blood vessels to become very leaky. This, along with clotting factors released from vascular endothelial cells, stimulates the coagulation cascade, resulting in microthrombosis (tiny clots), which leads to ischemia and tissue death of the kidney, intestines, heart, liver, brain and extremities.

When infection occurs, the immune system responds by releasing dozens of pro- and anti-inflammatory cytokines. Interleukin -6 (IL-6) is hypothesized to be a key component of the cytokine response. The sequences are highly simplified overviews illustrating the dysregulated immune response resulting in CSS.



SARS-CoV-2 IVD IHC Products to Assess COVID-19 Diagnosis and Pathogenesis

Antibody Species Cross-reactivity

Although Bio SB tests all antibodies for use with FFPE Human tissues in immunohistochemical applications, certain antibodies have demonstrated cross reactivity with the species below. Contact us for additional details regarding species reactivity.

Actin M.S. (HRP Green)

B7-H3 (AEC)

CD10 (AEC)

CD68 (AEC)

Chromogranin A (DAB)

COX-2 (DAB)

FOX01 (DAB)

CK AE1/AE3 (DAB)

Cytokeratin 20 (DAB)

Ki-67 (AEC)

MSH6 (DAB)

MUM1 (DAB)

PTEN (DAB)

SOX 10 (DAB)

Vimentin (DAB)

Detection Systems

Bio SB offers the molecular pathology community a robust and diverse array of Biotin and Fab Micropolymer based Immunohistochemistry Detection Systems for use in both research and clinical laboratories. With a variety of Biotin/Streptavidin & Fab Micropolymer detection chemistries, Bio SB is sure to have an Immunohistochemistry Detection Systems to meet your needs. Paired with the large array of Bio SB antibodies, chromogens, and ancillaries, Bio SB offers laboratories a sensitive and versatile catalog of IHC products at a competitive price.

All of Bio SB’s Immunohistochemistry Detection Systems are manufactured according to US FDA and ISO guidelines to ensure a high quality In-vitro diagnostic kit. All Bio SB detection systems come complete with an endogenous enzyme blocker, Biotin/Fab Micropolymer link (if applicable), AP or HRP labeled Strepatividin or Fab Micropolymer, and 10 substrate chromogens of choice.

IHC of ImmunoDetector ALK Blue staining Cytokeratin 34BE12 on FFPE Prostate Tissue

IHC of ImmunoDetector DAB HRP Brown staining MSH6 Rabbit Monoclonal on FFPE Colon Tissue

IHC of ImmunoDetector ALK Magenta staining SOX-2 on FFPE Brain Tissue

The Bio SB ImmunoDetector IHC (immunohistochemistry) Detection Systems are highly sensitive Biotin-Streptavidin detection kits that allow for the demonstration of antigens in formalin-fixed paraffin-embedded tissues, cryostat sections,cytosmears, and cell preparations. The ImmunoDetector IHC Detection Systems are universal detection kits which are suitable for use with mouse or rabbit primary antibodies. The increased sensitivity of the ImmunoDetector IHC Detection Systems allow for rapid staining procedures without compromising the quality of stains. Compared with competing avidin-biotin based detection systems, the Immunodetector generates higher sensitivity and specificity at a competitive price.



  • Biotin-Streptavidin AP or HRP, 2-Step Immunohistochemistry Detection Technology.
  • Ready-to-Use, High Sensitivity System Especially Designed for for Immunohistochemistry of Formalin-Fixed or Frozen Tissues.
  • Universal: Detects Mouse or Rabbit Antibodies.
  • It can be used with DAB HRP Brown, AEC HRP Red, HRP Green, HRP Blue and HRP Black Substrate-chromogen for HRP Kits.
  • It can be used with ALK Red, ALK Blue, ALK Magenta, ALK Brown, ALK Scarlet Substrate-chromogens for AP Kits.
  • For in Vitro Diagnostic Use. All kits manufactured according to US FDA and ISO 13485 Guidelines.

ImmunoDetector HRP Detection Systems

ImmunoDetector AP Detection Systems

ImmunoDetector AP Label

ImmunoDetector HRP Link and Label

IHC of PolyDetector DAB HRP Brown staining Cytokeratin 20 on FFPE Colon Cancer Metastisis to Lung Tissue

IHC of PolyDetector AEC HRP Red staining S100 Beta Rabbit Monoclonal on FFPE Melanoma Tissue

IHC of PolyDetector with HRP Green staining EpCAM/Ber-EP4 on FFPE Colon Carcinoma Tissue

The Bio SB PolyDetector IHC Detection Systems are non-Biotin, Fab Micropolymer detection kits that allow for the demonstration of antigens in formalin-fixed paraffin-embedded tissues, cryostat sections, blood smears, cytosmears, and cell preparations. The PolyDetector IHC Detection Systems technology was developed and is manufactured with a proprietary micropolymer backbone conjugated to anti-Mouse and anti-Rabbit Fab Ig’s plus high quality HRP or AP enzymes. The elimination of the anti-mouse and anti-rabbit immunoglobulin Fc region reduces non-specific reactions. This ensures consistent and reproducible immunostaining for all types of nuclear, cytoplasmic and membranous antigens, in different types of tissues. The increased sensitivity of this system allows for rapid staining procedures without compromising stain quality.

  • Non-Biotin, Fab Micropolymer AP or HRP, 1-Step Immunohistochemistry Detection Technology.
  • Fab micro-polymer detection technology allows for better cell penetration to deliver a highly specific and sensitive signal.
  • Ready-to-Use, High Sensitivity System Especially Designed for Immunohistochemistry of Formalin-Fixed or Frozen Tissues.
  • Universal: Detects Mouse or Rabbit Antibodies.
  • It can be used with DAB HRP Brown, AEC HRP Red, HRP Green, HRP Blue and HRP Black Substrate-chromogen for HRP Kits.
  • It can be used with ALK Red, ALK Blue, ALK Magenta, ALK Brown, ALK Scarlet Substrate-chromogens for AP Kits.
  • For in Vitro Diagnostic Use. All kits manufactured according to US FDA and ISO 13485 Guidelines.

PolyDetector HRP Detection System

PolyDetector AP Detection System

PolyDetector HRP and AP Label

IHC of PolyDetector DAB HRP Brown staining Cytokeratin 20 on FFPE Colon Cancer Metastisis to Lung Tissue

IHC of PolyDetector AEC HRP Red staining S100 Beta Rabbit Monoclonal on FFPE Melanoma Tissue

IHC of PolyDetector with HRP Green staining EpCAM/Ber-EP4 on FFPE Colon Carcinoma Tissue

The PolyDetector Plus IHC Detection Systems from Bio SB are highly sensitive 2-step, non-Biotin, Fab micropolymer detection kits that allows for the demonstration of antigens in formalin-fixed paraffin-embedded tissues, cryostat sections, blood smears, cytosmears, and cell preparations. The PolyDetector Plus IHC Detection Systems technology was developed and is manufactured with a proprietary micropolymer backbone conjugated to anti-mouse and anti-rabbit Fab Ig’s, plus high quality HRP or AP enzymes. The elimination of the anti-mouse and anti-rabbit immunoglobulin Fc region reduces non-specific reactions. The PolyDetector Plus kit incorporates an Immunoglobulin link and a Fab Micropolymer label.

The PolyDetector Plus is a universal IHC detection system which is optimized for use with Bio SB mouse or rabbit primary antibodies; however, these universal kits could be optimized to work with prediluted and concentrated antibodies from other vendors. The increased sensitivity of this detection system allows for rapid staining procedures without compromising stain quality. This multiple component Fab Micropolymer delivers a highly sensitive and specific signal in a shorter time-frame than the PolyDetector.

  • Non-Biotin, Fab Micropolymer HRP 2-Step Immunohistochemistry Detection Technology
  • Fab micro-polymer detection technology allows for better cell penetration to deliver a highly specific and sensitive signal.
  • Ready-to-Use, High Sensitivity System Especially Designed for Immunohistochemistry of Formalin-Fixed or Frozen Tissues.
  • Universal: Detects Mouse or Rabbit Antibodies
  • It can be used with DAB, HRP Brown, AEC HRP Red, HRP Green, HRP Blue and HRP Black Substrate-chromogen for HRP Kits.
  • For in-vitro diagnostic use. All kits manufactured according to US FDA and ISO 13485 Guidelines.

PolyDetector PLUS HRP Detection System

PolyDetector PLUS Link & HRP Label

Simple Sensitive and Simultaneous Target Detection

Simultaneous test for multiple IHC targets on one tissue. Reduction in labor and reagent costs.

Overview & Features

The Bio SB MultiDetector Kits are new, innovative detection kits designed for simultaneous detection for multiple targets on one tissue.These highly sensitive MultiDetector Kits feature accurate target detection for individual applications. Providing a reduction in labor and reagent cost.feature our PolyDetector Micropolymer detection system that allows for the demonstration of antigens in formalin-fixed paraffin-embedded tissues, cryostat sections, blood smears, cytosmears, and cell preparations.

  • Simple, sensitive and simultaneous target detection for specific applications.
  • Non-Biotin, Multidetector Fab Monomeric anti mouse & anti rabbit Immunohistochemistry detection technology.
  • Micro-polymer detection technology allows for better cell penetration to deliver a highly specific and sensitive signal.
  • Ready-to-Use, High Sensitivity System especially designed for Immunohistochemistry of formalin-fixed tissues.

Shop All MultiDetector Detection Systems:

Substrate Chromogens

IHC of Cytokeratin 20 Rabbit Monoclonal on FFPE Colon Cancer Metastisis to Lung Tissue (DAB)

IHC of PolyDetector AEC HRP Red staining S100 Beta Rabbit Monoclonal on FFPE Melanoma Tissue

IHC of EpCAM/Ber-EP4 on FFPE Melanoma Tissue (HRP Green)

Bio SB substrate-chromogens are highly sensitive chromogens that are optimized for use in immunohistochemistry. Multiplex IHC users can pair Bio SB AP & HRP PolyDetector systems with any combination of AP & HRP substrate-chromogens to detect multiple antigens on a tissue. Ideal for both clinical and research settings.

  • High Sensitivity and Low Background
  • DAB HRP Brown and ALK Magenta Chromogens Supplied as Two Components Kit
  • AEC HRP Red, ALK Blue Supplied as Ready-To-Use Formats
  • For in Vitro Diagnostic Use

Substrate-Chromogen Systems for Use with HRP Detection Systems

Substrate-Chromogen Systems for Use with AP Detection Systems
