Marvelous Maleimide Crosslinker Products

This review discusses Quanta BioDesign’s maleimide crosslinker products – what they do and when you might want to use them.


The maleimide functional group reacts selectively with free thiols below pH 7.5. However, at pH 7.5 and above, the maleimide double bond reacts competitively with free amines (for example, lysine side chains) and free thiols.

Amine-Reactive Maleimide Crosslinker Products

Acid-Functionalized Maleimide Crosslinker Products

At Quanta BioDesign, we offer single molecular weight maleimide-functionalized dPEG® acids with lengths of 2, 4, 6, 8, 12, and 24 EO units. The terminal propionic group can be functionalized to form a variety of active esters. Alternatively, direct coupling of the acid to an amine is possible using DCC or EDC (often sold as the hydrochloride salt). Leaving the acid end unmodified after conjugating the maleimide moiety alters the conjugate’s surface charge. Surface charge modification may beneficially affect some drug or payload delivery applications.

Figure 1: General structure of Quanta BioDesign’s MAL-dPEG®n-acid crosslinkers.

The following links lead to the product pages of our MAL-dPEG®-acid crosslinkers.

PN10265, MAL-dPEG®2-acid

PN10338, MAL-dPEG®4-acid

PN10065, MAL-dPEG®6-acid

PN10275, MAL-dPEG®8-acid

PN10285, MAL-dPEG®12-acid

PN10315, MAL-dPEG®24-acid

NHS ester-Functionalized Maleimide Crosslinker Products

N-Hydroxysuccinimide (NHS) esters are among the most common reactive acylating agents presently used in bioconjugation.[1] NHS esters were initially developed as homobifunctional crosslinkers.[2],[3] Today, they are among the most widely used amine-reactive crosslinking agents in bioconjugation.1

Quanta BioDesign’s MAL-dPEG®-NHS esters consistently top the list of our best-selling products. Customers tell us they appreciate our products’ quality and consistent performance in research and manufacturing applications. Moreover, many popular vendors of MAL-PEG-NHS esters purchase their products from us. We offer our products with linker lengths of 2, 4, 6, 8, 12, and 24 ethylene oxide units. Please see Figure 2 below.

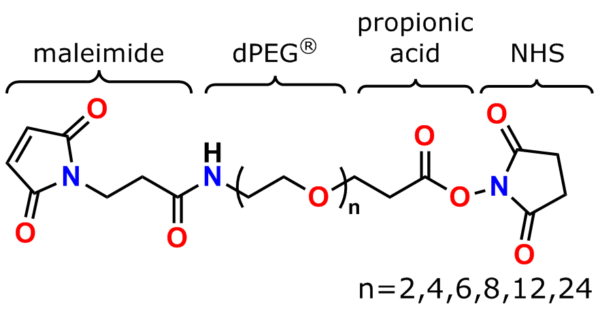

Figure 2: General structure of Quanta BioDesign’s MAL-dPEG®n-NHS ester crosslinkers.

The following links lead to our MAL-dPEG®-NHS ester products.

PN10266, MAL-dPEG®2-NHS ester

PN10214, MAL-dPEG®4-NHS ester

PN10064, MAL-dPEG®6-NHS ester

PN10274, MAL-dPEG®8-NHS ester

PN10284, MAL-dPEG®12-NHS ester

PN10314, MAL-dPEG®24-NHS ester

Again, these products are consistently our best sellers. We hope that you take the time to check them out and see why they are so popular.

TFP ester-Functionalized Maleimide Crosslinker Products

Active esters based on 2,3,5,6-tetrafluorophenol (TFP; see Figure 3) are an increasingly popular alternative to NHS esters.

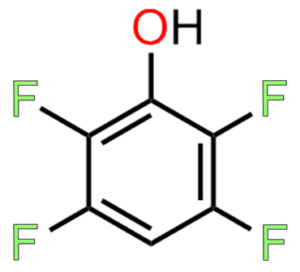

Figure 3: 2,3,5,6-Tetrafluorophenol is used to make Quanta BioDesign’s MAL-dPEG®n-TFP ester crosslinkers.

TFP esters are more stable to hydrolysis in aqueous media than NHS esters, as discussed below in more detail. Shorter MAL-dPEG®-TFP esters may have slightly reduced water solubility due to the hydrophobic TFP moiety on one end of the crosslinker. However, using a dry water-miscible solvent such as DMAC or acetonitrile can overcome any reduced water solubility issue.


Figure 4 shows the general structure of seven of our eight MAL-dPEG®-TFP esters, while Figure 5 shows the specific structure of one of Quanta BioDesign’s unique products, PN11303 MAL-dPEG®24-amido-dPEG®24-TFP ester. Quanta BioDesign designed PN11303 to provide a very long linker (158 atoms, 183.5 Å) between a thiol and an amine.

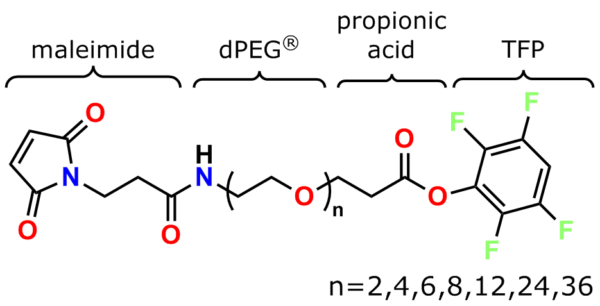

Figure 4: General structure of Quanta BioDesign’s MAL-dPEG®n-TFP ester maleimide crosslinker products.

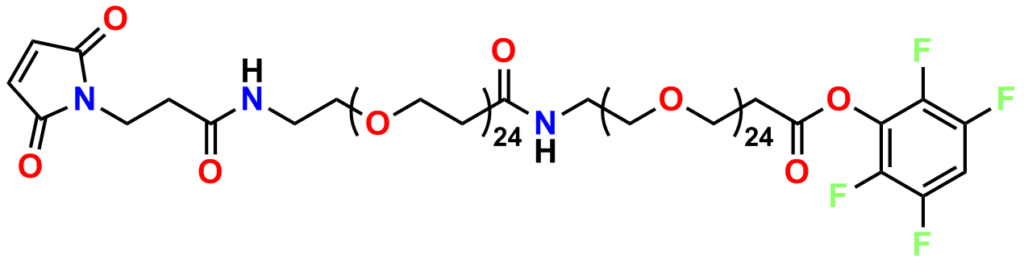

Figure 5: Structure of PN11303, MAL-dPEG®24-amido-dPEG®24-TFP ester
Figure 6: Structure of PN11093, MAL-dPEG®24-amido-dPEG®24-DSPE. This product exemplifies an application of PN11303, discussed above. Please see the text for details.

The following links lead to our TFP-functionalized MAL-dPEG® crosslinker products.

PN10549, MAL-dPEG®2-TFP ester

PN10551, MAL-dPEG®4-TFP ester

PN10556, MAL-dPEG®6-TFP ester

PN10552, MAL-dPEG®8-TFP ester

PN10553, MAL-dPEG®12-TFP ester

PN10554, MAL-dPEG®24-TFP ester

PN10555, MAL-dPEG®36-TFP ester

PN11303, MAL-dPEG®24-amido-dPEG®24-TFP ester

TFP ester, NHS ester, or acid-functionalized? Which terminal group do I choose?

The question of whether to use a TFP-, NHS-, or acid-terminated MAL-dPEG® crosslinker does not have a straightforward answer because several factors affect this choice. Some customers choose crosslinkers based on their familiarity with the chemistry. NHS esters are the most common, most popular amine-reactive groups for reactive acylating agents. Thus, the chemistry is quite well-known to most of our customers, and many pick NHS esters based primarily on that awareness. However, we strongly encourage customers to consider other factors as well.

One important factor to consider is whether you want to use an NHS or TFP ester. For example, a MAL-dPEG® acid should be used if the goal is to couple the MAL-dPEG®-acid via 1-hydroxybenzotriazole or another amine-reactive agent. Also, a carbodiimide can be used to couple a MAL-dPEG® acid directly to an amine without the need to form an active ester. If the direct coupling of the acid to an amine is desired, the acid-functionalized crosslinker should be used.

Quanta BioDesign’s in-house research demonstrated that TFP esters are more hydrolytically stable and reactive than NHS esters. In 2017, Jian Wang et al. confirmed experimentally that TFP esters were superior to NHS esters for PEGylation.[6] The half-lives of both NHS and TFP esters decrease as the pH increases. However, TFP esters consistently display longer half-lives than NHS esters across a wide range of pH values. In aqueous media, the optimum pH for conjugating TFP esters to amines is higher (>7.5) than NHS esters (7.0-7.2).

For reactions in water or aqueous buffers, pH is a consideration for the maleimide group also. At or above pH 7.5, the maleimide group reacts competitively with free amines, such as lysine side chains.1 However, the maleimide-thiol reaction proceeds optimally at pH 6.5 – 7.5,1,[7] while the reaction between TFP esters and free amines is very slow below pH 7.0.[8] In our experience, NHS esters should be used at pH 7.0 if the ester must be reacted before the maleimide. Conversely, if the maleimide can be reacted first, it may be possible to use a TFP ester provided that the maleimide-thiol reaction is conducted at pH < 7 to prevent unwanted TFP ester hydrolysis or acylation of amines by the TFP ester.

The water solubility of TFP esters should also be considered. Our shortest MAL-dPEG®-TFP ester products are less soluble in water than the corresponding MAL-dPEG®-NHS esters. The use of water-miscible organic solvents such as DMAC or acetonitrile may permit product dissolution, allowing the reaction to proceed; however, in cases where organic solvents are impermissible, NHS esters may be preferred over TFP esters. Water solubility is generally not an issue for TFP esters with dPEG®8 and longer linker chains.

The choice of solvent for the reaction is critical to success. In addition to choosing the correct pH for aqueous reactions, users should ensure that aqueous buffers contain neither free amines nor free thiols that can react with the crosslinkers. We recommend using dry solvents for reactions run entirely in organic solvents (drying for >48 hours over activated 3 Å molecular sieves is sufficient) free of amines and thiols. If an organic base is required to drive the reaction of the active ester with free amines, we recommend a highly hindered base such as 2,6-lutidine over more commonly used organic bases such as triethylamine.

4-formyl-benzamido-dPEG®12-EDA-MAL, a maleimide crosslinker that can form a Schiff base, secondary amine, hydrazone, or oxime bond

4-formyl-benzamido-dPEG®12-EDA-MAL, product number 10075 (Figure 7), is another unique product from Quanta BioDesign. Like our MAL-dPEG®-acid and MAL-dPEG®-NHS/TFP ester products, PN10075 crosslinks amines and thiols. However, the bond formed between an aldehyde and an amine imine, also known as a Schiff base. The imine reduces to a secondary amine with various reducing agents.

Figure 7: Full-length (top) and abbreviated (bottom) structure of PN10075, 4-formyl-benzamido-dPEG®12-EDA-MAL. This product reacts with amines to form imines (Schiff bases), hydrazides to form hydrazones, and aminooxy compounds to form oxime bonds. Please see the text for details.

Imine chemistry is dynamic, and that dynamism has proven highly valuable to synthetic chemists constructing supramolecular materials and stable exotic materials via dynamic covalent chemistry. A 2012 tutorial review by Matthew E. Belowich and Sir Fraser Stoddart provides excellent, clear details on dynamic imine chemistry.[9]

If the aldehyde end of PN10075 reacts with a hydrazide, it forms a hydrazone, which is stable in water but reverts to starting materials in the presence of mild aqueous acid. Hydrazone bonds are useful for forming prodrugs and other constructs that should degrade in acidic environments. If PN10075 reacts with an oxyamine, the bond formed is an oxime, which is more stable than a hydrazone bond.

Figure 8 shows the reaction between an amine and PN10075. The imine-forming reaction proceeds most quickly at pH 3 – 5 but can proceed at higher pH values with the aid of a catalyst.[10],[11],[12] High pH imine-forming reactions may necessitate reacting the maleimide end of PN10075 before the aldehyde end to avoid reactions between the maleimide and free amines. However, low pH reactions may not necessarily require that the maleimide-thiol conjugation occurs before the imine-forming reaction.



Figure 8: The reaction of PN10075, 4-formyl-benzamido-dPEG®12-MAL with an amine to form an imine (Schiff base).

Imines hydrolyze readily to starting materials in the presence of water. If aqueous stability is required, then the imine must be reduced to a secondary amine. Many agents reduce Schiff bases to secondary amines, including H2, borane, borohydrides, and silanes.[13],[14] Reductive amination of imines to secondary amines commonly uses sodium borohydride.[15] However, sodium borohydride also reduces aldehydes and ketones that may be present in the molecule. Therefore, milder reducing agents such as sodium cyanoborohydride[16],[17] or sodium triacetoxyborohydride[18] may be required. Water and protic solvents rapidly destroy sodium triacetoxyborohydride,[19] which may necessitate changes in the reaction setup.

Figure 9 shows an example reduction of an imine-containing conjugate of PN10075. In the example, the maleimide group is conjugated to a thiol. We speculate that delaying the maleimide-thiol conjugation until after the reduction is possible using very mild reducing conditions to form the secondary amine. However, we have no direct data on this point.

Figure 9: Reduction of an imine (Schiff base) to a secondary amine with sodium cyanoborohydride. The imine is from Figure 8. The maleimide is shown as having been reacted with a thiol; however, as noted in the text, this may not be required before reduction if the reduction conditions are suitably mild.

Homofunctional Maleimide Crosslinker Products

Quanta BioDesign offers a variety of crosslinkers where all the terminal ends contain maleimide functional groups. We offer two homobifunctional maleimide products (two maleimide ends on a linear, discrete PEG), three homotetrafunctional maleimide products (four-armed discrete PEG), and one homohexafunctional maleimide product (six-armed discrete PEG). We build all of these products using our discrete PEG products. Two of the three homotetrafunctional maleimide products contain a pentaerythritol core, and one contains a tris core (Figure 10). The homohexafunctional maleimide product, PN11436, Hexa(-dPEG®11-MAL)dipentaerythritol, is built on a dipentaerythritol core (Figure 11).

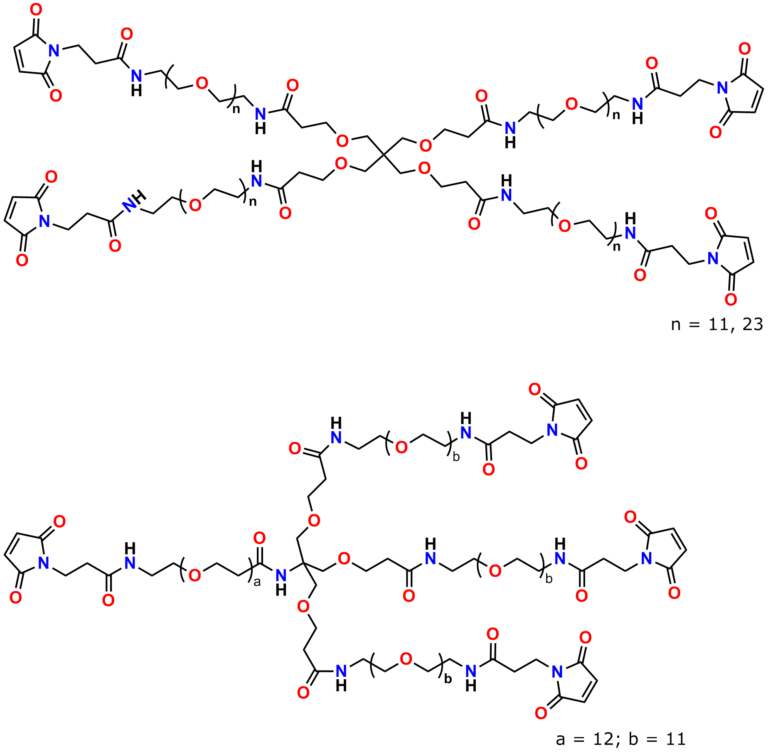

Figure 10: Structures of Quanta BioDesign’s homotetrafunctional maleimide crosslinker products. Pentaerythritol forms the core of the top structure, while the bottom structure uses a tris core.

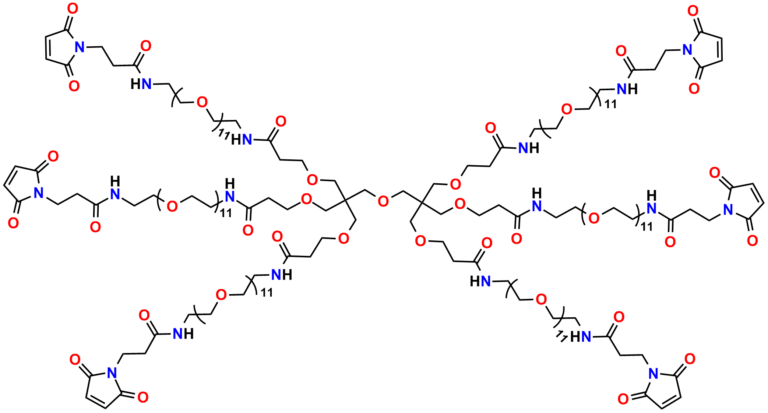

Figure 11: Structure of Quanta BioDesign’s homohexafunctional crosslinker, PN11436, Hexa(-amido-dPEG®11-MAL)dipentaerythritol.

The following links go to the product pages for the homo-x-functional Maleimide Crosslinker Products.

Homobifunctional Maleimide Crosslinkers

PN10215, Bis-MAL-dPEG®3

PN10397, Bis-MAL-dPEG®11

Homotetrafunctional Maleimide Crosslinkers

PN11433, MAL-dPEG®12-Tris(-dPEG®11-MAL)3 (Tris core)

PN11435, Tetra(-amido-dPEG®11-MAL)pentaerythritol (pentaerythritol core)

PN11414, Tetra(-amido-dPEG®23-MAL)pentaerythritol (pentaerythritol core)

Homohexafunctional Maleimide Crosslinker

PN11436, Hexa(-amido-dPEG®11-MAL)dipentaerythritol

Applications for these products include cross-linking proteins in proximity analysis, forming large protein or peptide complexes for diagnostic or therapeutic applications, and crosslinking thiol-functionalized surfaces in supramolecular materials construction.

Other Marvelous Maleimide Crosslinkers

Quanta BioDesign offers two unique PEG-based maleimide crosslinkers built around a lysine core (Figure 12). PN10630, bis-MAL-Lysine-dPEG®4-acid (Figure 12a), and PN10631, bis-MAL-Lysine-dPEG®4-TFP ester (Figure 12b), both contain a dPEG®4 linker conjugated to the acid terminus of lysine and maleimidopropyl groups conjugated to each amine group of lysine. PN10630 has a propionic acid reactive terminus, while PN10631 is functionalized as a TFP ester.

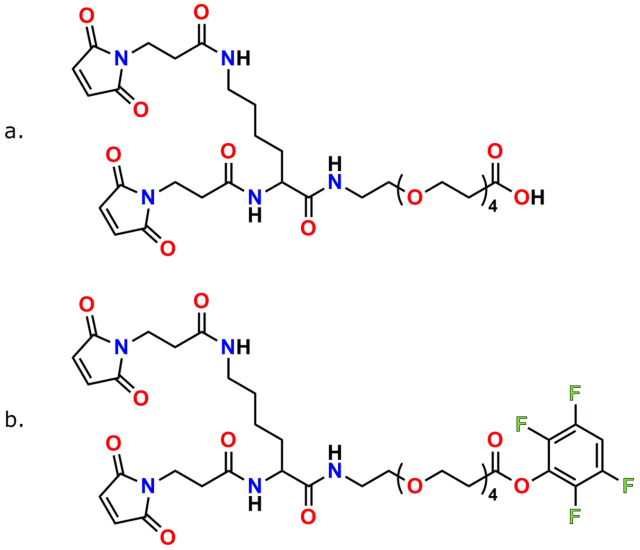

Figure 12: Chemical structures of Bis-MAL-Lysine crosslinker products. a. PN10630, Bis-MAL-Lysine-dPEG®4-acid; b. PN10631, Bis-MAL-Lysine-dPEG®4-TFP ester.

The bis-maleimido groups can bridge disulfide bonds or, as shown by Tae Hyung Kim, Hai Hua Jiang, Seulki Lee, et al., conjugate two mono-sulfhydryl Exendin-4 peptides to one discrete PEG linker.[20] Moreover, PN10630 forms an essential part of two of Quanta BioDesign’s PK/BD modifier products, PN11630, Bis-MAL-Lysine-dPEG®4-dPEG®12-Tris(-dPEG®24-acid)3, and PN11633, Bis-MAL-Lysine-dPEG®4-dPEG®12-Tris(m-dPEG®24)3.

Quanta BioDesign also offers a few maleimide crosslinker products containing no discrete PEG linker. These compounds can be building blocks for PEGylated crosslinkers or standalone crosslinkers for specific applications.

Figure 13 shows one example of a non-PEGylated maleimide crosslinker, Bis-Maleimide Amine, TFA salt, product number 10232. This product contains bis-maleimide-functionalized lysine, similar to the PEGylated crosslinkers discussed above. However, 1,6-diaminohexane replaces the dPEG®4 linker of PN10630 and PN10631 as the linker arm in this product. PN10232 is quite hydrophobic and offers none of the benefits of our maleimide crosslinker products functionalized with discrete PEG.

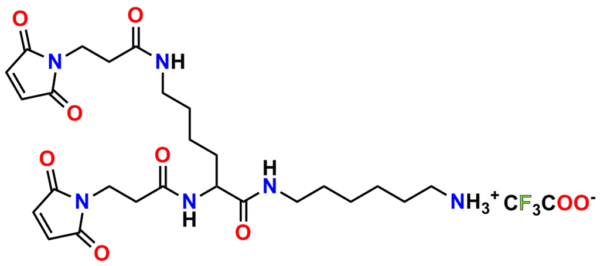

Figure 13: Structure of PN10232, Bis-Maleimide Amine, TFA salt, a non-PEGylated maleimide crosslinker product.

A 2012 study by Scheer, Sandoval, Elliott, et al. successfully used PN10232 to design trastuzumab variants with customized F(ab’)2 domains. In this study, the authors introduced single cysteine substitutions into the VH and VL regions of trastuzumab’s Fab region. PN10232 then crosslinked different Fab units, creating custom-made F(ab’)2 units with new functions.[21]

For customers who want to build their own maleimide-functionalized products or use maleimide alone as a very short crosslinker, Quanta BioDesign offers 3-maleimidopropionic acid, product number 10323, which we call MPS-acid (Figure 14), and NHS-3-maleimidopropionate, product number 10217, which we call MPS (Figure 15).

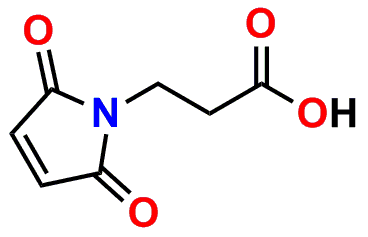

Figure 14: MPS-acid, product number 10323, also known as 3-maleimidopropionic acid.

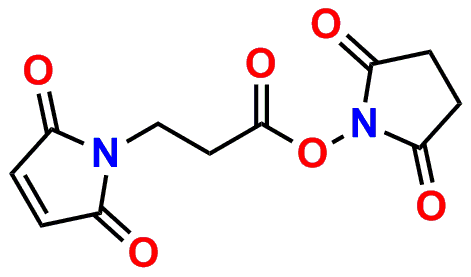

Figure 15: PN10217, MPS, also known as NHS-3-maleimidopropionate.

Product numbers 10323 and 10217 both react with thiol at the maleimide olefin bond. With PN10323, functionalizing the terminal acid with an alkylating agent such as NHS, TFP, or HOBt permits cross-coupling to an amine. However, using a carbodiimide such as EDC permits direct coupling of the terminal acid to a free amine. PN10217 can be directly reacted with an amine using a hindered base such as 2,6-lutidine to drive the reaction. PN10323 and PN10217 are useful as very short crosslinkers and building blocks for new, longer crosslinkers.

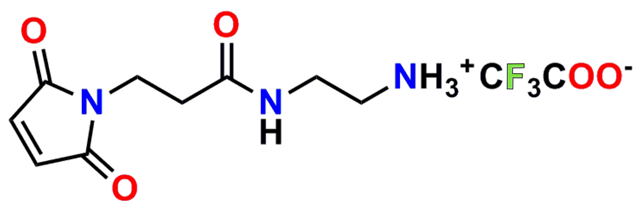

Figure 16: Product number 10177, MPS-EDA∙TFA.

Finally, Quanta BioDesign offers product number 10177, MPS-EDA∙TFA (Figure 16), a short, non-PEGylated maleimide crosslinker product. This product crosslinks a sulfhydryl group with a carboxylic acid, or it can be used as a building block with discrete PEG to form a new crosslinker having a longer spacer between the maleimide group and the PEG linker.

The links below go to the maleimide crosslinker products on this website’s Other Thiol Reactive product page discussed in this section.

PN10630, bis-MAL-Lysine-dPEG®4-acid

PN10631, bis-MAL-Lysine-dPEG®4-TFP ester

PN10232, Bis-Maleimide Amine, TFA salt

PN10323, MPS-acid

PN10217, MPS



Quanta BioDesign offers many varied crosslinkers with maleimide functional groups on one or more ends of linear and multi-armed discrete PEG (dPEG®) products. These crosslinkers enable the conjugation of thiols with amines or thiols with other thiols. Numerous product applications exist for these crosslinkers, including antibody-drug conjugates (ADCs), fragment-drug conjugates (FDCs), protein-complex proximity analysis, FRET applications, modification of thiol-functionalized surfaces, supramolecular materials construction, and many more.

We say that our maleimide crosslinker products are “marvelous” because our dPEG® technology makes them so. Discrete PEG products improve the hydrophilicity of poorly water-soluble products and reduce the immunogenicity of potentially antigenic compounds. Because these products are single molecular weight products, the analysis of bioconjugates is simplified compared to traditional, non-uniform (i.e., polydispersed) PEG products.

We invite you to consider our maleimide-dPEG® crosslinkers for your research and development applications. Our products are used in diagnostic and therapeutic applications globally and have been featured in hundreds of peer-reviewed scientific publications and thousands of patents over the past 20+ years. Try our dPEG® products and discover the dPEG® difference!
