CDH17: A Safe CAR-T Target for Treatment of Solid Tumors

Chimeric antigen receptor T cell (CAR-T) therapy has been successful in the field of hematological malignancies, but it is not effective in solid tumors. However, this situation may be about to change. A VHH1-CAR T cell targeting CDH17 was developed by researchers at the University of Pennsylvania School of Medicine, which specifically eradicated CDH17-expressing neuroendocrine tumors (NET) and gastric, pancreatic, and colorectal cancer cells without damaging CDH17-expressing normal cells. This indicates that CDH17 is a potentially safer CAR-T therapeutic target. The results of this study were published in the journal Nature Cancer on March 21, 2022 [1].

CDH17, also known as liver–intestine cadherin or LI-cadherin, is a member of the 7-D subfamily of the cadherin family and is mainly expressed in the gastrointestinal system. Compared with other common CAR-T targets, CDH17 has tissue specificity so the corresponding CAR-T drug toxicity is relatively low. CDH17 has a longer extracellular region, containing seven cadherin domains, and a shorter intracellular region (Figure 1). Studies have shown that CDH17 is highly expressed in well-differentiated advanced tumors, but rarely expressed in poorly differentiated tumors [2]. It is often used clinically as an immunohistochemical marker for the diagnosis of digestive system adenocarcinoma.

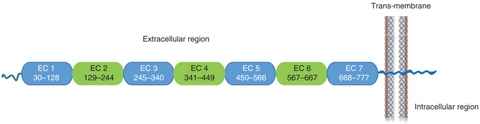

Figure 1. CDH17 structure [3]

CDH17 is a Ca2+-dependent cell adhesion molecule that can activate cell adhesion signals after binding to integrin molecules such as integrin α2β1 (Figure 2). Due to the short intracellular region, CDH17 cannot mediate tight junctions by interacting with intracellular cadherins and actin, but rather by directly binding intracellular scaffold proteins. Due to localized expression at the tight junctions between cells, macromolecular targeted drugs may not be able to reach or bind CDH17. On the contrary, tumor cells express CDH17 on all cell surfaces due to lack of polarity, so this may also be one of the reasons why the VHH1-CAR T cells mentioned above only attack tumor cells but not normal cells.

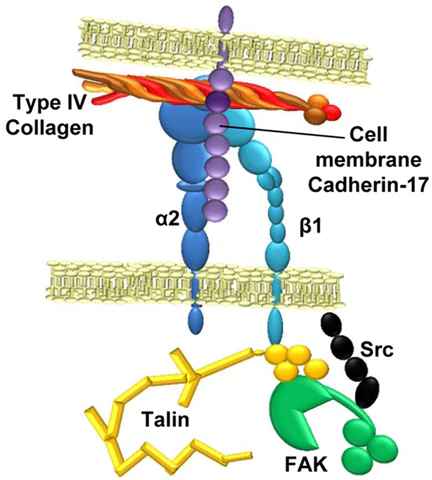

Figure 2. CDH17 binds Integrin α2β1 [4]

As a potential safety target, CDH17 is promising in the treatment of solid tumors. At present, the fastest-growing CDH17-targeted drug is Boehringer Ingelheim’s dual-antibody drug, BI 905711, which can bind to both CDH17 and the death receptor TRAILR2 on the surface of tumor cells, inducing tumor cell apoptosis without damaging CDH17-negative normal tissue cells (Figure 3).

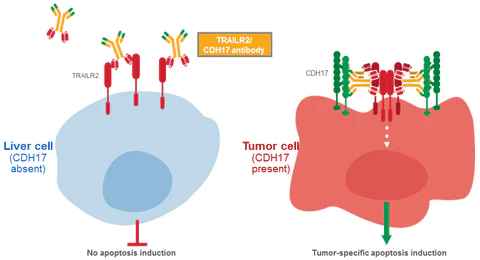

Figure 3. The mechanism of action of BI 905711 [5]

Other dual-antibody drugs include ARB202 developed by Hong Kong Aibel Pharmaceutical Technology Co., Ltd., which targets the RGD domain of CD3 and CDH7 respectively, prevents CDH17 from binding to integrin, and recruits T cells for tumor killing. The treatment of ARB202 for patients with solid tumors such as colorectal cancer, cholangiocarcinoma, pancreatic cancer, and gastric cancer is in Phase I clinicals. In addition, the cell therapy CHM 2101 (CDH17 CAR-T) and CHM2301 (CDH17 CAR-NK) deployed by Chimeric Therapeutics are both in the preclinical development stage. The drug market layout of CDH17 is quite broad, and it is expected that there will be good progress in the next period of time.

Drug NameType of DrugTargetDevelopment AgencySatgeIndications
BI 905711Dual AntibodyCDH17, TRAILR2Boehringer IngelheimPhase ICholangiocarcinoma, colorectal, stomach, esophageal, & pancreatic cancer
ARB202Dual AntibodyCDH17, CD3ArbelePhase ICholangiocarcinoma, liver, colorectal, pancreatic, & stomach cancer
CDH17 A4Monoclonal AntibodyCDH17Oxford BiotherapeuticsPreclinical/
CHM 2101CAR-TCDH17Chimeric Therapeutics; University of PennsylvaniaPreclinicalNeuroendocrine tumor, nodules, colon, esophageal, & stomach cancer
CHM 2301CAR-NKCDH17Chimeric TherapeuticsPreclinicalSolid tumor

Overcoming solid tumors has always been a direction of human efforts. CDH17 may represent a new and safer drug development target, which has implications for future cell therapy, especially CAR cell therapy. In this regard, KACTUS has independently designed and developed a line of highly active CDH17 recombinant proteins, covering a variety of species and tags. These can meet customers’ needs in animal immunization, antibody screening, and epitope identification in different scenarios. All products have passed strict quality monitoring to ensure the batch-to-batch stability of the products. KACTUS is helping to progress the development of CDH17-targeted drugs through high-quality CDH17 products.

Product Data

ELISA Data: Human CDH17 binding CDH17 antibody

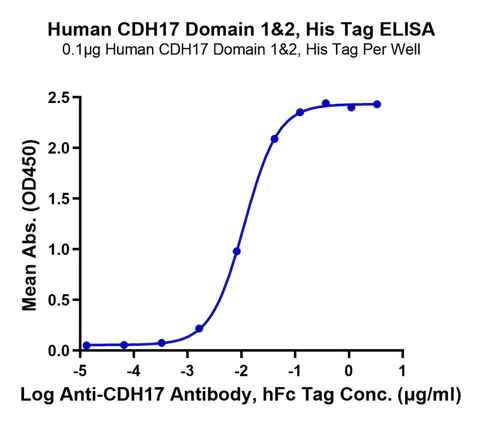

ELISA Data: Human CDH17 Domain 1&2 Binds CDH17 Antibody

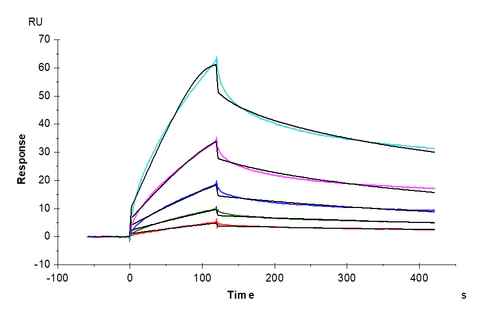

SPR Data: Cynomolgus CDH17 Binds CDH17 Antibody

KACTUS Product List


Catalog Description
CDH-HM117 Human CDH17, His Tag
CDH-HM117B Biotinylated Human CDH17, His-Avi Tag
CDH-HM217 Human CDH17, hFc Tag
CDH-HM1D5 Human CDH17 Domain 1&2, His Tag
CDH-HM3D3 Human CDH17 Domain 3&4, mFc Tag
CDH-HM1D4 Human CDH17 Domain 5-7, His Tag
CDH-HM1D4B Biotinylated Human CDH17 Domain 5-7, His Tag
CDH-HM1D1 Human CDH17 Domain 1-6, His Tag
CDH-HM117F FITC-Labeled Human CDH17/Cadherin 17 Protein
CDH-MM117 Mouse CDH17, His Tag
CDH-CM117 Cynomolgus CDH17, His Tag
CDH-RM117 Rhesus macaque CDH17, His Tag
ITG-HM1AB Human ITGA2&ITGB1, His Tag
ITG-MM1AB Mouse ITGA2&ITGB1, His Tag


[1] Feng Z, He X, Zhang X, Wu Y, Xing B, Knowles A, Shan Q, Miller S, Hojnacki T, Ma J, Katona BW, Gade TPF, Schrader J, Metz DC, June CH, Hua X. Potent suppression of neuroendocrine tumors and gastrointestinal cancers by CDH17CAR T cells without toxicity to normal tissues. Nat Cancer. 2022 May;3(5):581-594.

[2] Hinoi T, Lucas PC, Kuick R, Hanash S, Cho KR, Fearon ER. CDX2 regulates liver intestine-cadherin expression in normal and malignant colon epithelium and intestinal metaplasia. Gastroenterology. 2002 Nov;123(5):1565-77.

[3] Caporuscio C, Holmes D, Olah TV, Shipkova P. Immunoaffinity enrichment LC-MS/MS quantitation of CDH17 in tissues. Bioanalysis. 2020 Oct;12(20):1439-1447.

[4] Bartolomé RA, Peláez-García A, Gomez I, Torres S, Fernandez-Aceñero MJ, Escudero-Paniagua B, Imbaud JI, Casal JI. An RGD motif present in cadherin 17 induces integrin activation and tumor growth. J Biol Chem. 2014 Dec 12;289(50):34801-14.
